SC UPC Fiber Optic Pigtail Single Mode Low Insertion Loss For CATV Systems

  • 1
  • 2
  • 3

Brand Name : Purple Horn

Model Number : SC UPC Pigtail

Certification : CE/ROSH/IOS9001

Place of Origin : China

MOQ : 200

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000sets

Delivery Time : 5-10 work days

Packaging Details : stander packing

Connector Type : Sc FC St LC Upc

Application : FTTH FTTB FTTX Network, ftth

Return Loss (dB) : Upc>50dB; APC>55dB

Dimensions : 2.0mm, 3.0mm, 0.9mm..Customize

Insertion Loss : <0.3dB

Contact Now

SC/UPC Singlemode Simplex Fiber Optic Pigtail

Description
Optical Fiber Pigtail can provide a quick and easy termination of fibers in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.Our quick connector system removes any requirements for epoxy,adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.


Feature
1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules

Application
1.Access Network
2.Telecom/CATV Systems
3.Active device termination
4.Local Area Networks (LANs)
5.Metro
6.Test equipment
7.Data processing networks
8.Wide Area networks (WANs)
9.FTTX
Parameters
Standard Fiber Cable Assemblies
Fiber Type
SM(G.652/G.657)
MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Loss (dB)
≤0.25dB
≤0.3dB
TIA/EIA-455-107
(PC/UPC/APC)
(PC/UPC)
Return Loss (dB)
≥50dB(PC/UPC)
≥40dB(PC/UPC)
TIA/EIA-455-107
≥60dB(APC)
Exchange-ability
≤0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (ºC)
-10 ~ +70
Storage Temperature (ºC)
-40 ~ +85
Package
1 pieces/bag
All values specified are with connectors

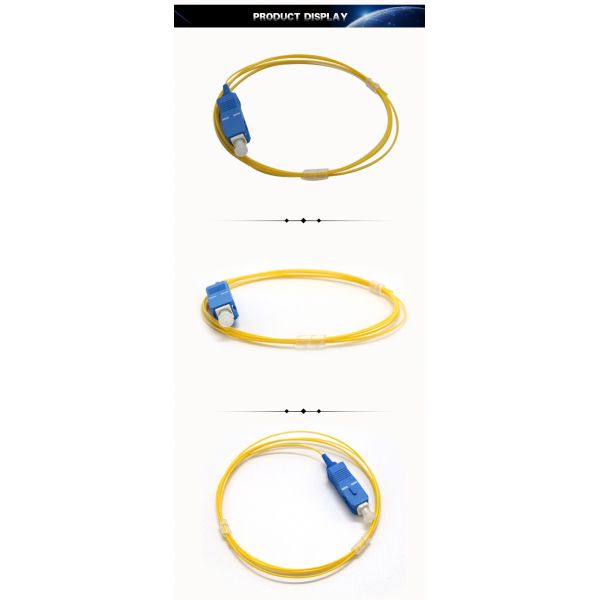

SC UPC Fiber Optic Pigtail Single Mode Low Insertion Loss For CATV SystemsSC UPC Fiber Optic Pigtail Single Mode Low Insertion Loss For CATV Systems

SC UPC Fiber Optic Pigtail Single Mode Low Insertion Loss For CATV Systems
